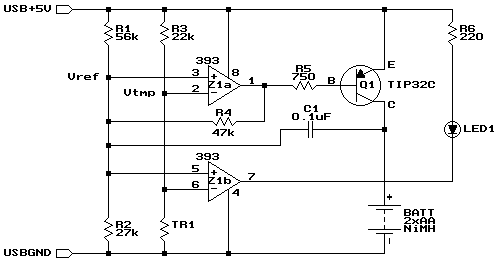

CARGADOR DE BATERIAS NIMH AA A TRAVÉS DE USB CON TIP32C Y LM393
Cell Type | Charge Time |
---|---|
700mAh NiCd | 1.5h |
1100mAh NiCd | 2.5h |
1600mAh NiMH | 3.5h |
2000mAh NiMH | 4.5h |
2500mAh NiMH | 5.5h |

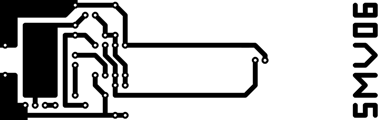

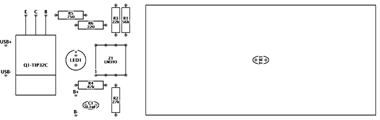

Part |
Description |
---|---|
R1 | 56kΩ ¼W, 5% resistor |
R2 | 27kΩ ¼W, 5% resistor |
R3 | 22kΩ ¼W, 5% resistor |
R4 | 47kΩ ¼W, 5% resistor |
R5 | 750Ω ¼W, 5% resistor |
R6 | 220Ω ¼W, resistor |
TR1 | 10kΩ @ 25°C thermistor, approx. 3.7%/C° NTC Radio Shack #271-110 (discontinued†) |
C1 | 0.1µF 10V capacitor |
Q1 | TIP32C PNP transistor, TO-220 case |
Z1 | LM393 dual voltage comparator IC, DIP |
LED1 | Red, green, or yellow LED, 10mA |
Other | 2-cell AA battery holder USB cable Small heatsink |
Part | Alternative Resistor Values to use with Vishay #2381 640 54103 Thermistor |
---|---|
R1 | 82kΩ ¼W, 5% resistor |
R2 | 33kΩ ¼W, 5% resistor |
R3 | 27kΩ ¼W, 5% resistor |
R4 | 39kΩ ¼W, 5% resistor |
Fuente: http://www.stefanv.com/electronics/usb_charger.html
