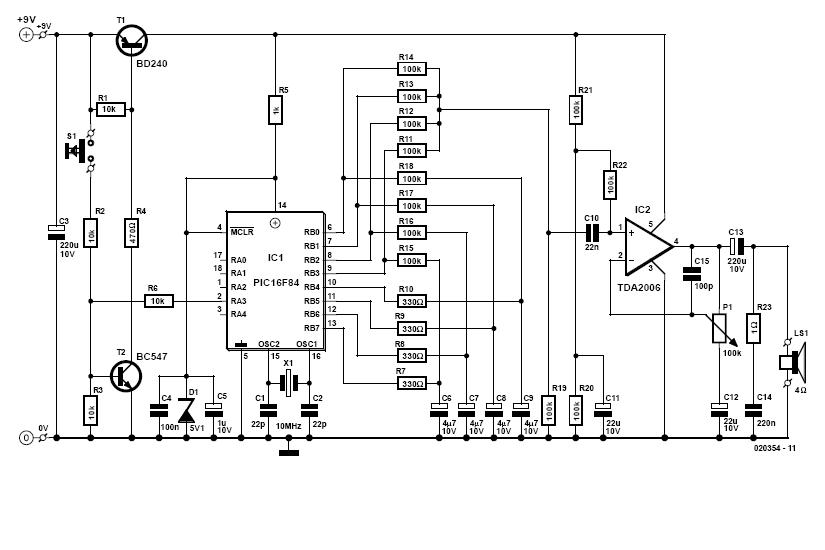

Timbre de puerta polifonico con pic 16F84 Door Chime

ASM

    #include def84.asm
    #include macro84.asm

    errorlevel 2

 	org 0x0C			;start of RAM
;VARIABLES
;*********

masque	res	1
masque1	res	1
compteur0	res	1
compteur1	res	1
compteur2	res	1
compteur3 	res 	1
note0	res	1
note1	res	1
note2	res	1
note3	res	1
play0	res	1
play1	res	1
play2	res	1
play3	res	1

accident      res           1
duree	res	1
vitesse	res	1
c1 	res 	1
ptrmorceaul	res	1
ptrmorceauh	res	1
num_morceau	res	1
num0	res	1

;CONSTANTES
;**********

#define 	fa0d     	.0	;notes
#define 	sol0   	.1
#define 	la0    	.2
#define 	si0b    	.3
#define 	si0    	.4
#define 	do0    	.5
#define 	do0d    	.6
#define 	re0    	.7
#define 	mi0    	.8
#define 	fa1    	.9
#define 	fa1d    	.10
#define 	sol1   	.11
#define 	la1    	.12
#define 	si1b    	.13
#define 	si1    	.14
#define 	do1    	.15

#define 	tcr    	.0	;duration
#define 	dcr    	.1
#define 	cr    	.3
#define 	crp    	.5
#define 	n    	.7
#define 	np    	.11
#define 	b    	.15
#define 	bp    	.23
#define 	r    	.31

#define 	fin      	.1	;event
#define 	tempo      	.2
			; power on-off
#define 	power         porta,0x03

;***********************************
 org 0x0
 Go_to_ Main;

 org 0x04

;interrupt routine
;************************
Begin_
  bcf intcon,toif
  Move vitesse,timer
  movlw 0xF0
  bsf    status,rp0		; begin of charge capacitor program
  iorwf  trisb
  bcf    status,rp0
  Dec  duree			;decrement duration and test if zero
  If_ zero then
  Begin_
    _ Morceau			;if duration=0 then call procedure morceau
  Endif_
retfie

Procedure_ Morceau;
;*****************
Begin_
    Movei  0xFF,masque1		;prepare the capacitor mask
    movlw  0x0F
 _  Morceau0
    Move   wreg,accident		;get duration and pitch
    Move   wreg,duree
    swapf  accident
    rrf    accident
    Andi   accident,0x07
    Andi   duree,0x1F
    Inc    duree                  ; 1 to 32
    bcf    carry
    rlf    duree
    bcf    carry
    rlf    duree

    If_eqi accident,fin then		;the end : power off
      bcf  power
la    goto  la
    Endif_
    If_eqi accident,tempo then
      Move duree,vitesse
      Addi 0x03,ptrmorceaul
      If_ carry
        Inc ptrmorceauh
      Endif_
      Go_to_ Morceau
    Endif_

    Inc  ptrmorceaul		; get number of notes to interpret PLAY0...PLAY3
    If_   zero
      Inc  ptrmorceauh
    Endif_
 _  Morceau0
    Move   wreg,play0
    Move   wreg,play1
    swapf play0
    Andi  play0,0x0F
    Andi  play1,0x0F

    Inc   ptrmorceaul
    If_   zero
      Inc  ptrmorceauh
    Endif_
 _  Morceau0
    Move   wreg,play2
    Move   wreg,play3
    swapf play2
    Andi  play2,0x0F
    Andi  play3,0x0F

    Inc  ptrmorceaul
    If_   zero
      Inc  ptrmorceauh
    Endif_

    Movei high Tabnote,pch		;get value for charging capacitors
    Move  play0,wreg
    If_not zero then
   _  Tabnote
      Move wreg,note0
      bcf   masque1,0x7		; capacitor 0
    Endif_

    Movei high Tabnote,pch
    Move  play1,wreg
    If_not zero then
   _  Tabnote
      Move wreg,note1
      bcf   masque1,0x6		; capacitor 1
    Endif_

    Movei high Tabnote,pch
    Move  play2,wreg
    If_not zero then
   _  Tabnote
      Move wreg,note2
      bcf   masque1,0x5		; capacitor 2
    Endif_

    Movei high Tabnote,pch
    Move  play3,wreg
    If_not zero then
   _  Tabnote
      Move wreg,note3
      bcf   masque1,0x4		; capacitor 3
    Endif_

    Move  masque1,wreg		; update outputs RB4..RB7 for envelop generation
    bsf   status,rp0
    And   trisb,wreg
    bcf   status,rp0
End_

Procedure_ Write; 		; Write to EEPROM
;***************
Begin_
   bsf   	status,rp0
   bsf   	eecon1,wren
   Movei 	0x55,eecon2
   Movei 	0xaa,eecon2
   bsf   	eecon1,wr
   Repeat_
   Until_ 	eecon1,eeif
   bcf   	eecon1,wren
   bcf   	eecon1,eeif
   bcf   	status,rp0
End_

Procedure_ Read;		; Read from EEPROM
;***************
Begin_
   bsf    	status,rp0
   bsf    	eecon1,rd
   bcf    	status,rp0
   bsf    	intcon,gie
   Move  	eedata,wreg
End_

Procedure_ Init;
;**************
Begin_
   Movei    0xF0,portb
   Movei    0x00,porta
   bsf      power
   bsf      status,rp0   		;page 1 >0x80..
   Movei    0x0,trisa
   Movei    0xFF,trisb		;port B as input;

   Clr      intcon       		; clear interrupts
   Clr      roption
   bcf      roption,psa   		;timer divisor=max
   bsf      roption,ps0
   bsf      roption,ps1
   bsf      roption,ps2
   bcf      roption,t0cs  		;timer 0 clock source=clock  Q/4
   bsf      roption,rbpu		;
   bcf      status,rp0

   Movei    0x00,eeadr		; read songnumber from EEPROM
 _ Read
   Move     wreg,num0
   Movei    0x01,eeadr
 _ Read
   xorwf    num0,wreg
   addlw    0x01
   If_not   zero then		; Error : rewrite songnumber
   Begin_
     Clr    eeadr
     Clr    eedata
   _ Write
     Movei  0x01,eeadr
     Movei  0xFF,eedata
   _ Write
   Else_
     Inc    num0		;increment songnumber
     If_eqi num0,0x08
       Clr  num0
     Endif_
     Move   num0,eedata
     Clr    eeadr
   _ Write			;save songnumber to EEPROM
     comf   num0,wreg
     Move   wreg,eedata
     Inc    eeadr
   _ Write
   Endif_

   Movei high Tabmorceau,pch	; search for start of song to play
   bcf   carry
   rlf   num0,wreg
 _ Tabmorceau
   Move  wreg,ptrmorceauh
   Movei high Tabmorceau,pch
   rlf   num0,wreg
   addlw 0x01
 _ Tabmorceau
   Move  wreg,ptrmorceaul
   bsf   intcon,toie  		; enable timer interrupt
   Clr   c1
   Movei .1,duree
   Movei 0xFF,timer
End_

Procedure_ Play;
;**************
Begin_
debut
    bsf   intcon,gie		; enable global interrupt (timer)
    clrf  masque		; initialize mask
    bcf   intcon,gie		; disable interrupt

    Decf  compteur0		; decrement counter for note generation
    btfsc zero			; if not zero:
    goto  a0			; reload counter
b0  Dec   compteur1		; counter1
    btfsc zero
    goto  a1
b1  Dec   compteur2		; counter2
    btfsc zero
    goto  a2
b2  Dec   compteur3		; counter3
    btfsc zero
    goto  a3
b3  Move  masque,wreg
    Bset  banque1
    Xor   trisb,wreg		;invert selected outputs RBO..RB3 (square wave)
    Bclr  banque1
    goto  debut

a0   Move note0,compteur0	; reload counter
     bsf  masque,0x00		; update mask
     goto b0
a1   Move note1,compteur1
     bsf  masque,0x01
     goto b1
a2   Move note2,compteur2
     bsf  masque,0x02
     goto b2
a3   Move note3,compteur3
     bsf  masque,0x03
     goto b3
End_

Program_ Main;
;******************
Begin_
_ Init;
_ Play;
End_

 #include morceau.asm

End__
